Surface / suspended rail
For true ceilings, exposed services and suspended compositions.
- Lengths / rating
- 1 / 2 / 3 m
- Section / body
- 27 × 53 mm
- Finish
- Black
Smart home · Automation · LightingPlan your home
Sense architectural lighting · India editionOne line.
One line.
Every layer of light.
A curated 48 V magnetic track system for ambient, task and accent lighting—selected for Indian homes, hospitality and display spaces.
India configuration in engineering validation · BIS registration pending

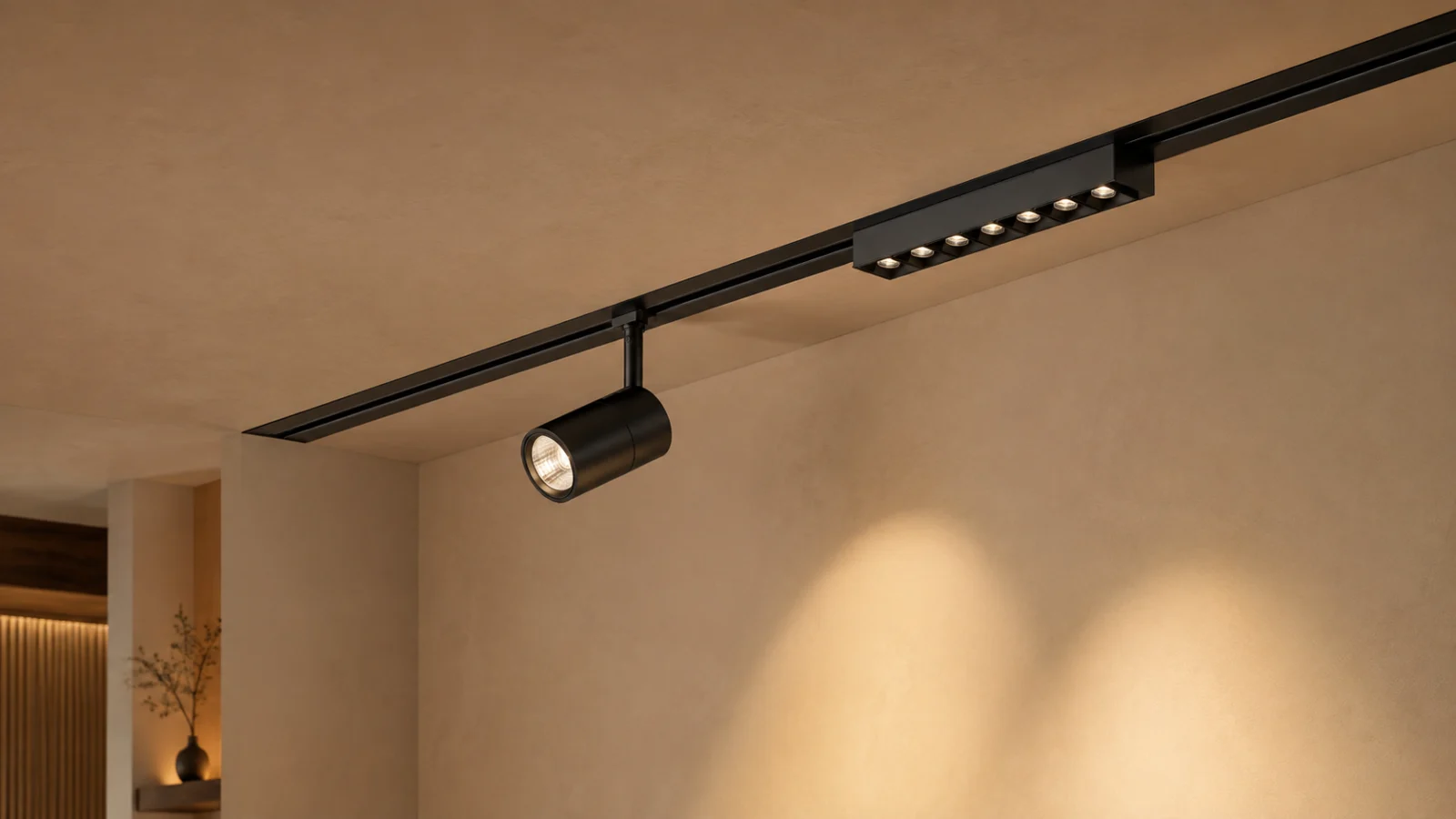

01 — A system, not a fixtureMove the light.
Move the light.
Keep the architecture.
A protected low-voltage rail becomes the lighting infrastructure. Spotlights, grille lights, floods and pendants can be placed, aimed and regrouped as the room changes.
We selected the best-specified products in the source range and removed incomplete hose-light and proprietary remote-control products from this India launch collection. The intended Sense edition uses Zigbee control; protocol behaviour remains subject to per-model validation before release.
02 — The railRecessed, surface
Recessed, surface
or suspended.
Start with the ceiling condition, then size the 48 V supply from the selected module load, cable run and engineering headroom.
Recessed rail
Two catalog profiles for coordinated false-ceiling details.
- Lengths / rating
- 1 / 2 / 3 m
- Section / body
- 64 × 47 mm
- Finish
- Black / white
Power + connection
48 V output supplies, feeds, straight, flexible, L, T and X connections, end caps and suspension kits.
- Lengths / rating
- 100 / 200 W
- Section / body
- 220 / 310 × 23 × 26 mm
- Finish
- Black
03 — Curated India rangeTwelve optical families.
Twelve optical families.
One 48 V platform.
Power, beam and envelope values below are transcribed from the supplied manufacturer catalog. No lumen, lifetime or IP claim is added where the catalog does not provide one.

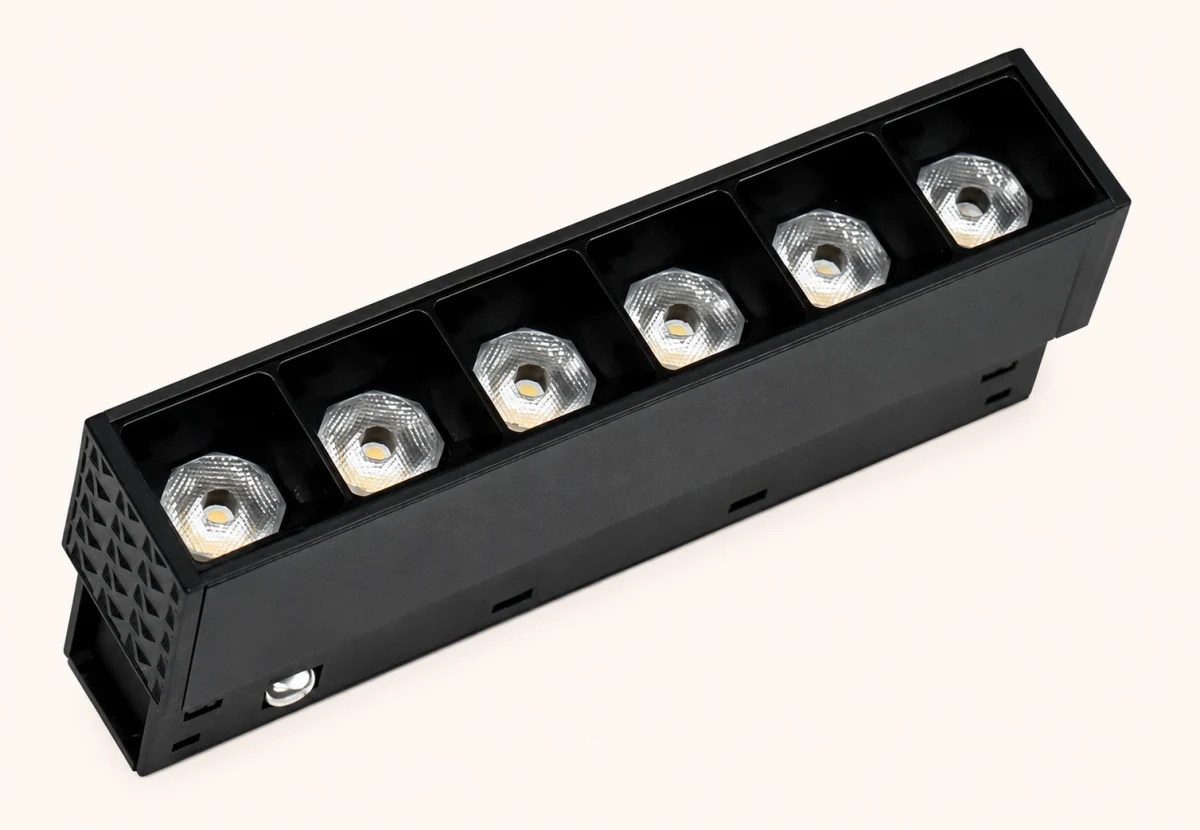

01Deep grille
Quiet, low-glare general and task light from a slim multi-cell module.
- Power
- 6 / 12 / 18 / 24 W
- Beam
- 24°
- Envelope
- 110 / 220 / 330 / 432 × 22 × 25 mm

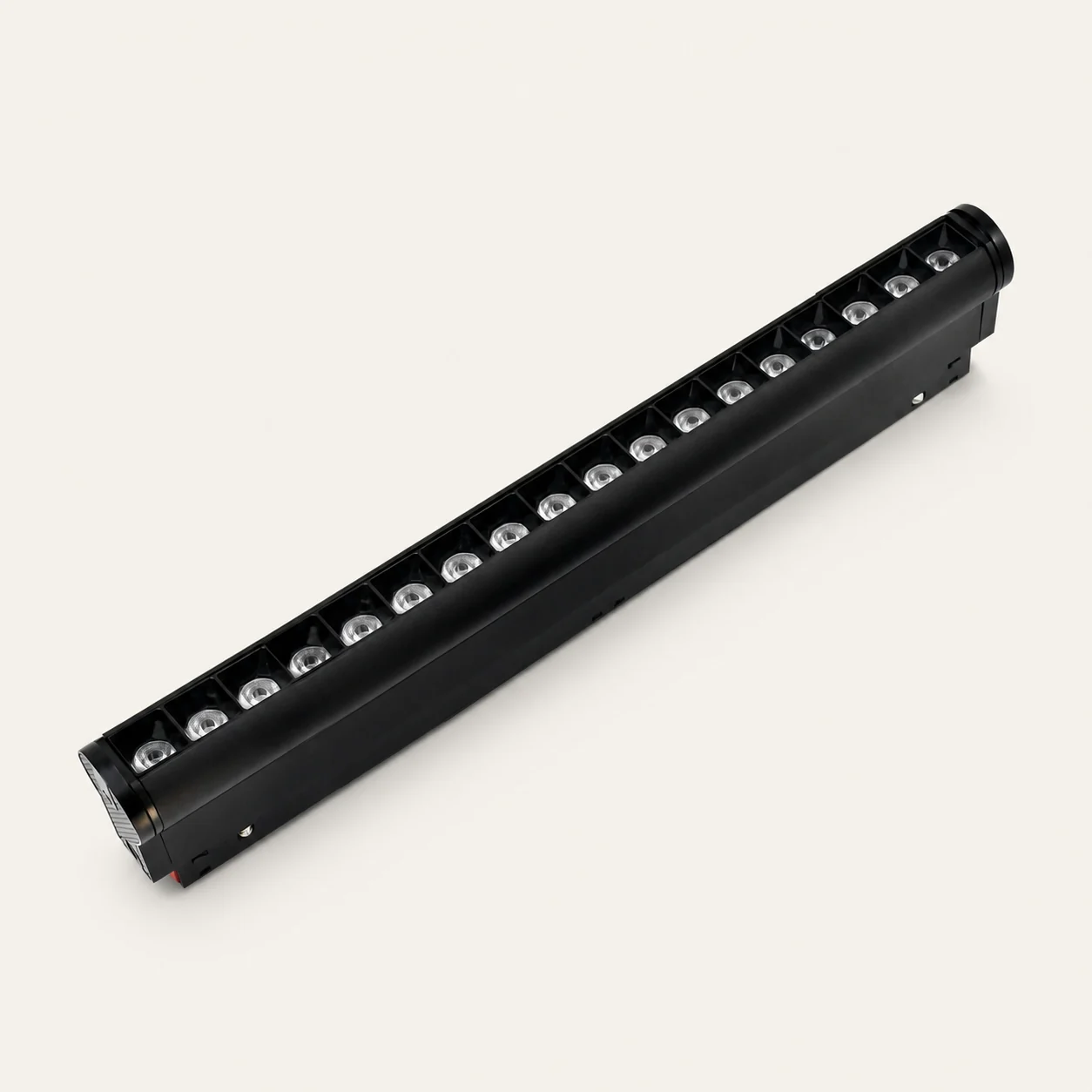

02Adjustable grille
Rotating and folding multi-cell light for counters, art and changing layouts.
- Power
- 6 / 12 / 18 W
- Beam
- 24°
- Envelope
- Rotating: 123 / 231 / 354 × 74 × 34 mm · Folding: 110 / 220 / 328 × 22 × 105–107 mm

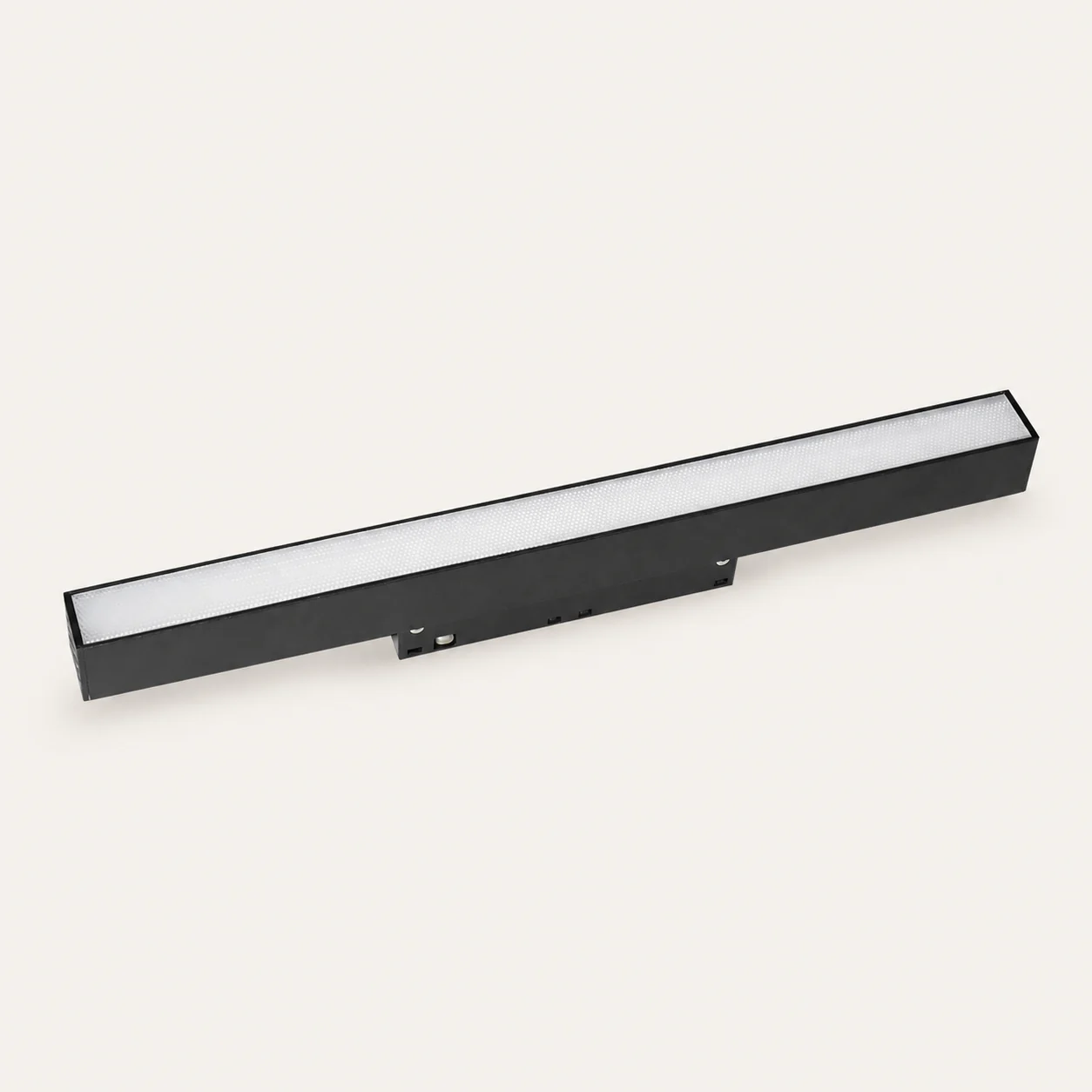

03Linear flood
A broad, continuous layer for circulation, walls and useful ambient light.
- Power
- 10 / 20 / 30 / 40 W
- Beam
- 120°
- Envelope
- 300 / 600 / 900 / 1200 × 22 × 25 mm

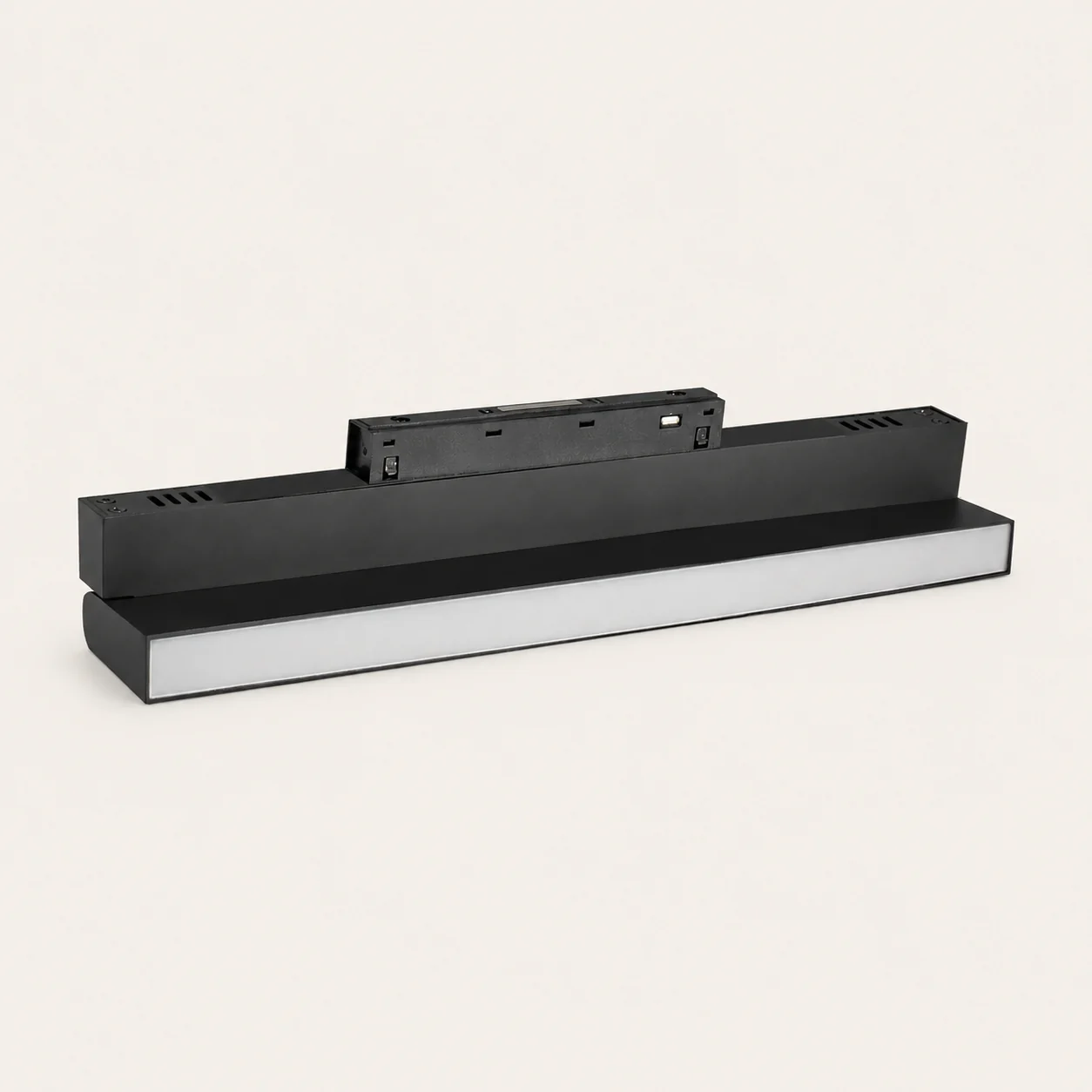

04Folding flood
Wide light that can be aimed away from the rail plane.
- Power
- 6 / 12 / 18 W
- Beam
- 120°
- Envelope
- 110 / 220 / 328 × 22 × 105–107 mm

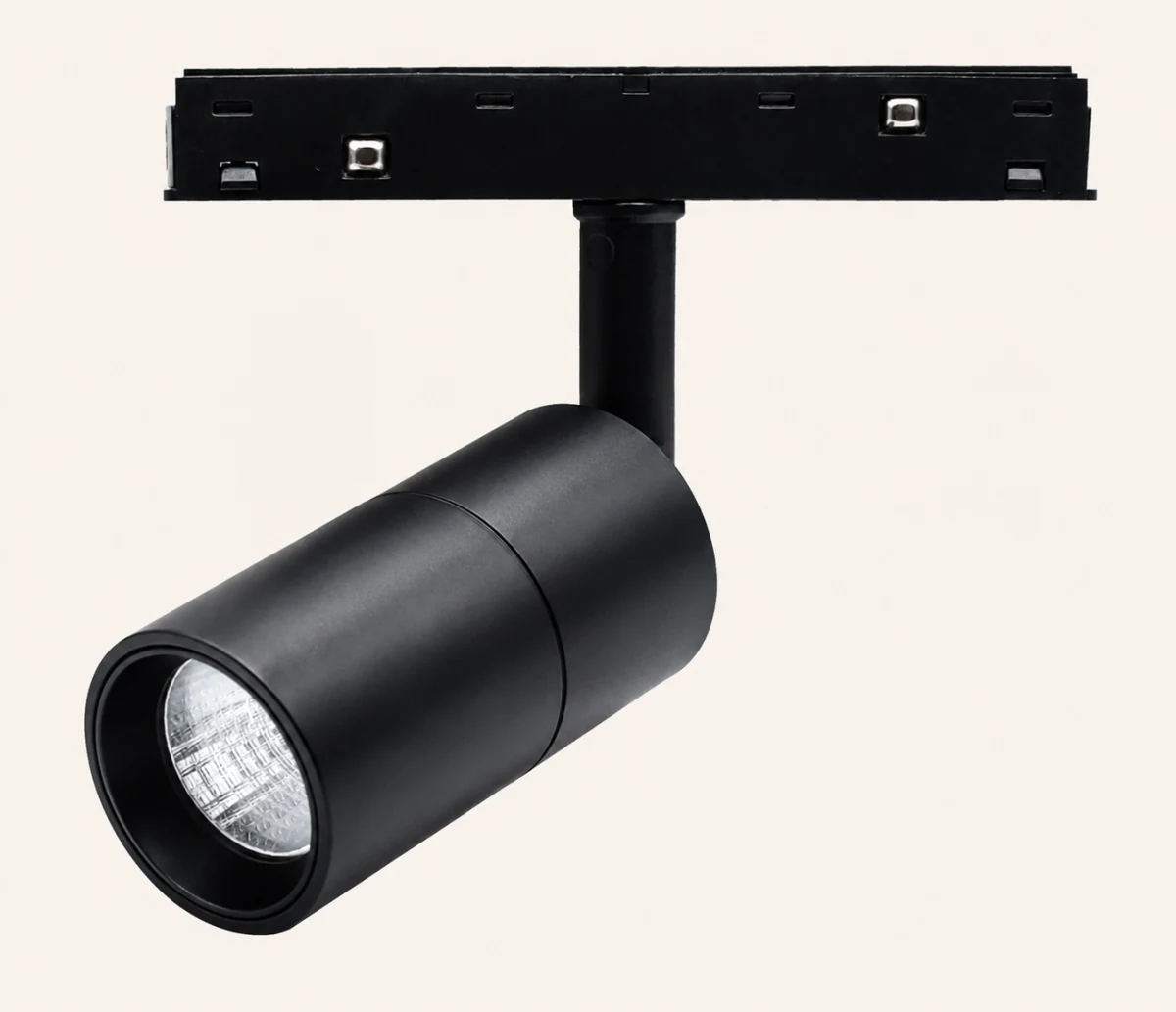

05Track spotlight
A cylindrical accent light for objects, artwork and architectural detail.
- Power
- 12 / 20 / 30 W
- Beam
- 15° / 24° / 36°
- Envelope
- Ø48 × 118 / Ø60 × 145 / Ø68 × 155 mm

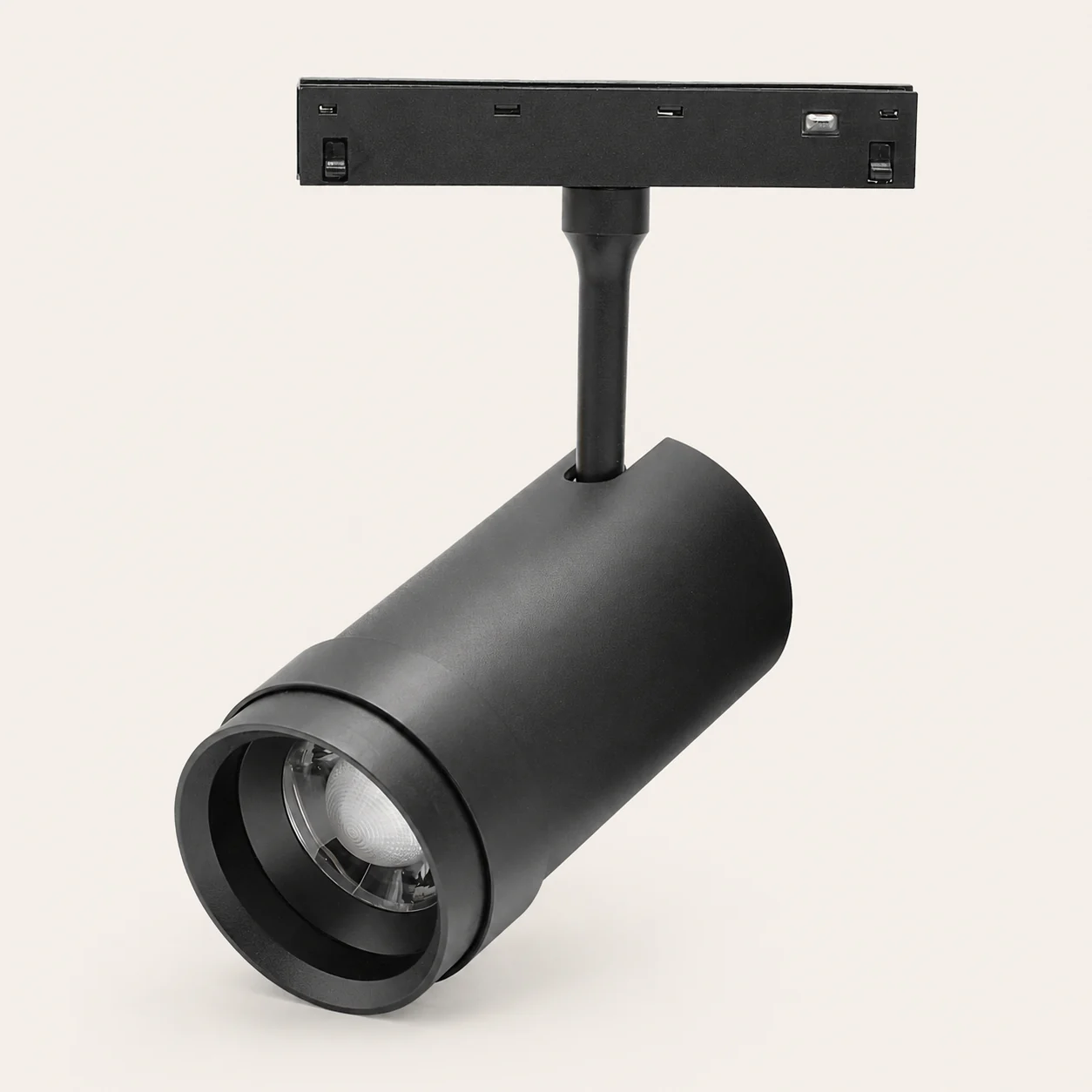

06Focusing spotlight
A variable beam for galleries, collections and layouts that evolve.
- Power
- 12 / 20 / 30 W
- Beam
- 10°–55°
- Envelope
- Ø45 × 99 / Ø55 × 153 / Ø65 × 156 mm
07Compact spotlight
A smaller accent head where the ceiling line should stay visually light.
- Power
- 7 / 12 / 15 / 18 W
- Beam
- 24° / 36°
- Envelope
- Ø45–60 × 90–148 mm

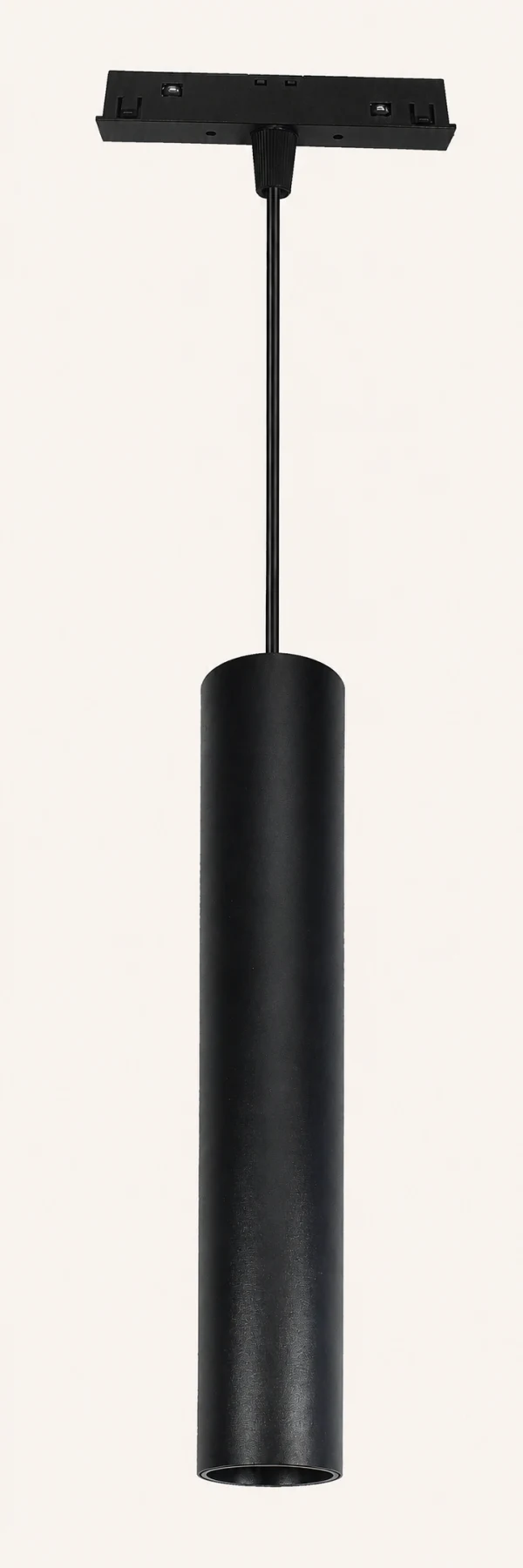

08Pendant
A narrow suspended pool of light for dining tables, islands and bedside use.
- Power
- 10 W
- Beam
- 15° / 24°
- Envelope
- Ø30 × 300 mm body

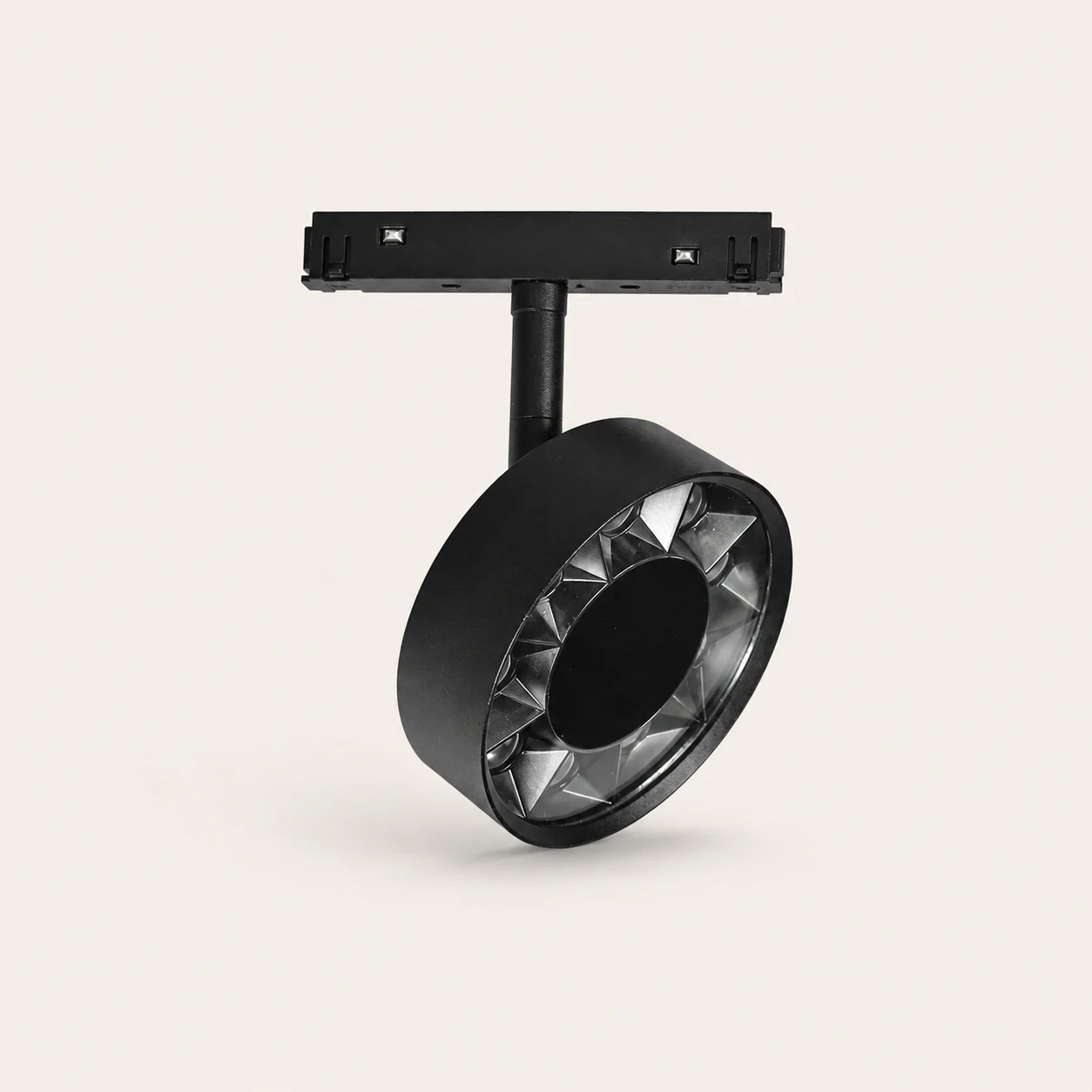

09Grille + flood fill
Round adjustable heads with either controlled cells or broad flood distribution.
- Power
- 7 / 10 / 18 W
- Beam
- 24° grille · 120° flood
- Envelope
- Ø95 / Ø110 × 30 mm

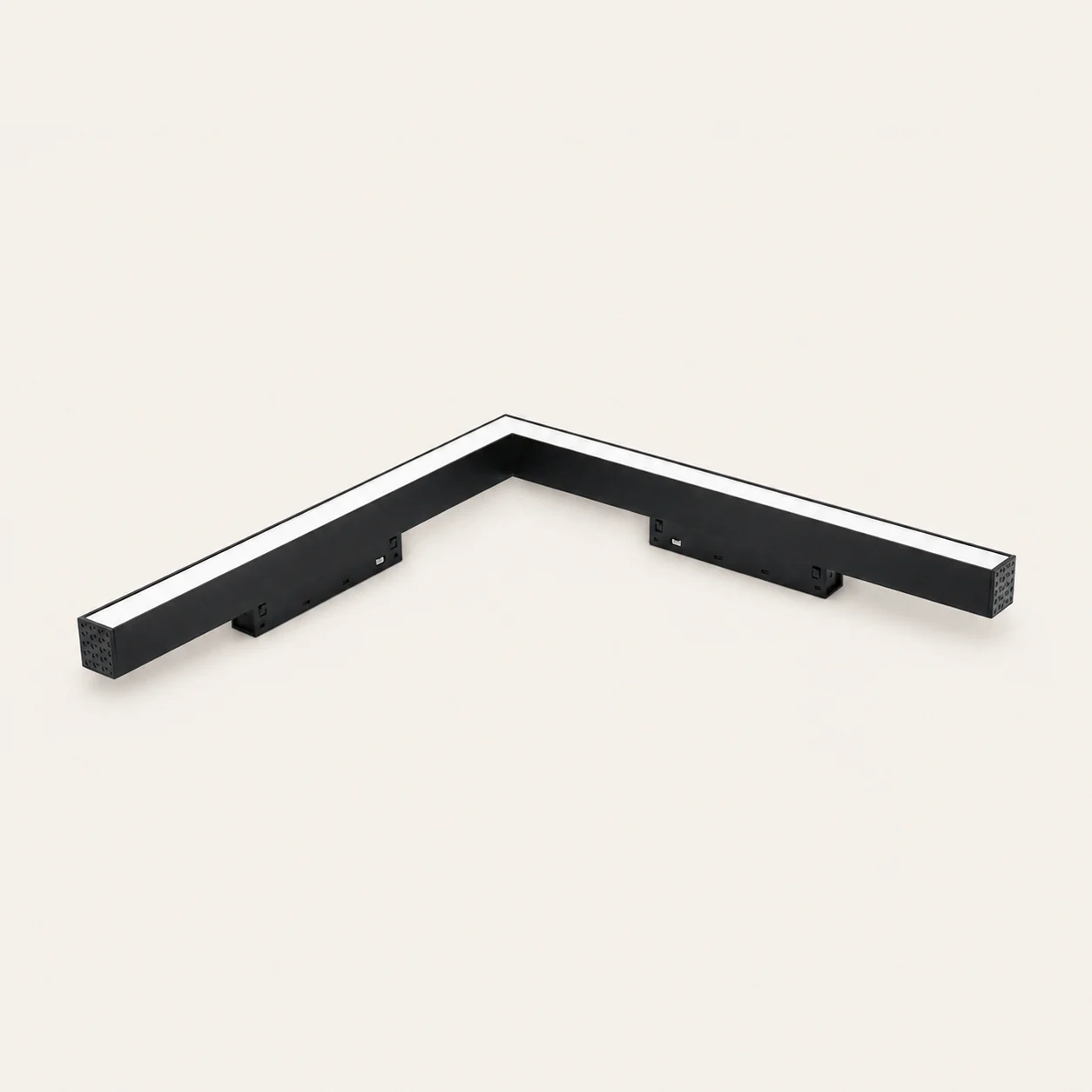

10Corner flood
Horizontal or vertical corner modules that carry an unbroken line through a turn.
- Power
- 16 W
- Beam
- 120°
- Envelope
- 325 × 305 × 25 mm

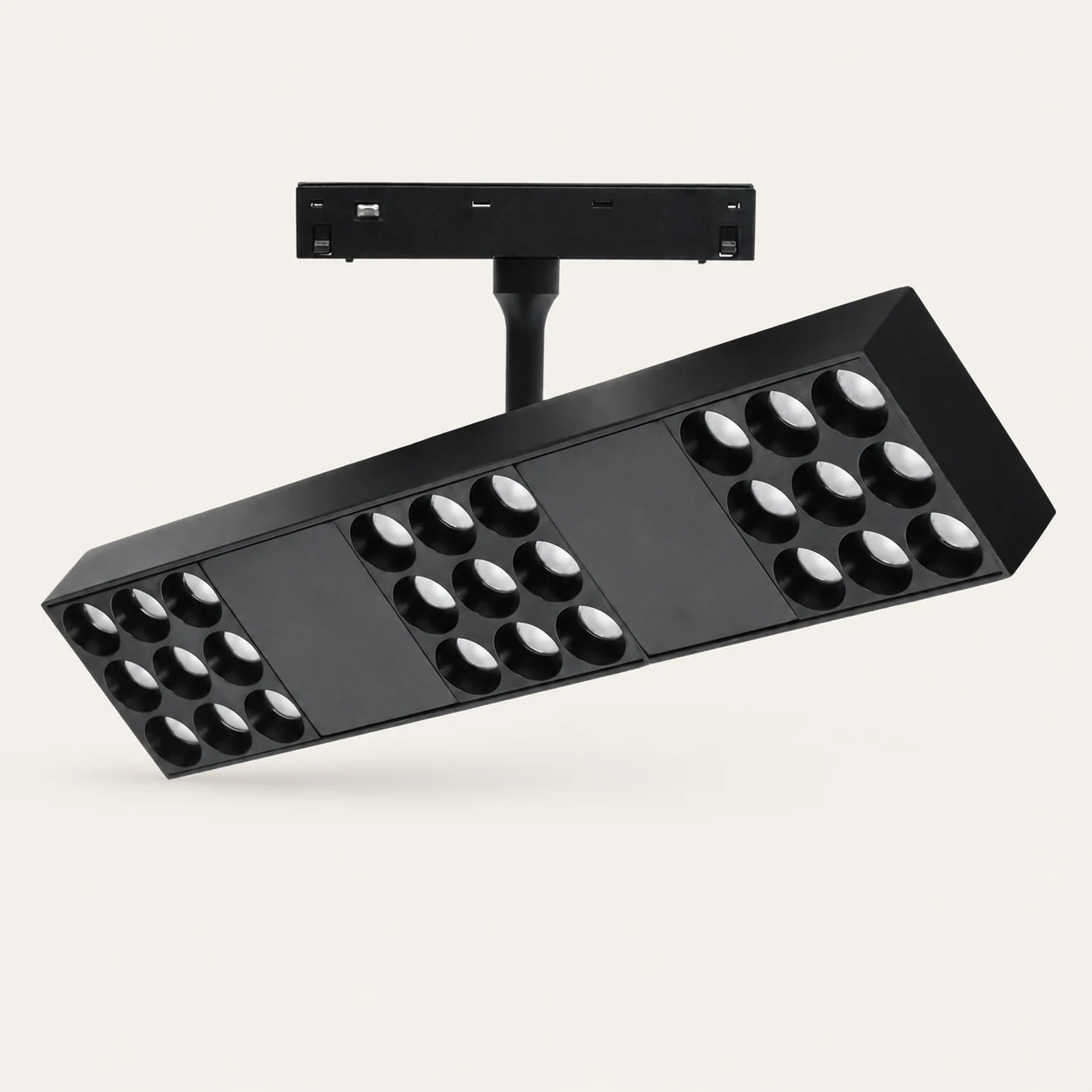

11Grid spotlight
A larger multi-cell field for retail displays, art and high-output accents.
- Power
- 9 / 18 / 27 W
- Beam
- 24° / 50°
- Envelope
- 65 / 170 / 280 × 25 × 110 mm
12Diamond rod flood
A raised luminous bar with a very wide distribution for ambient layers.
- Power
- 10 / 20 / 30 W
- Beam
- 180°
- Envelope
- 300 / 600 / 900 × 25 × 87 mm
04 — Recessed downlightsQuiet in the ceiling.
Quiet in the ceiling.
Precise in the room.
Four independent Sense design targets translate current global smart-lighting benchmarks into a focused India range. Final optics, drivers, photometry and certification remain subject to production-sample validation.

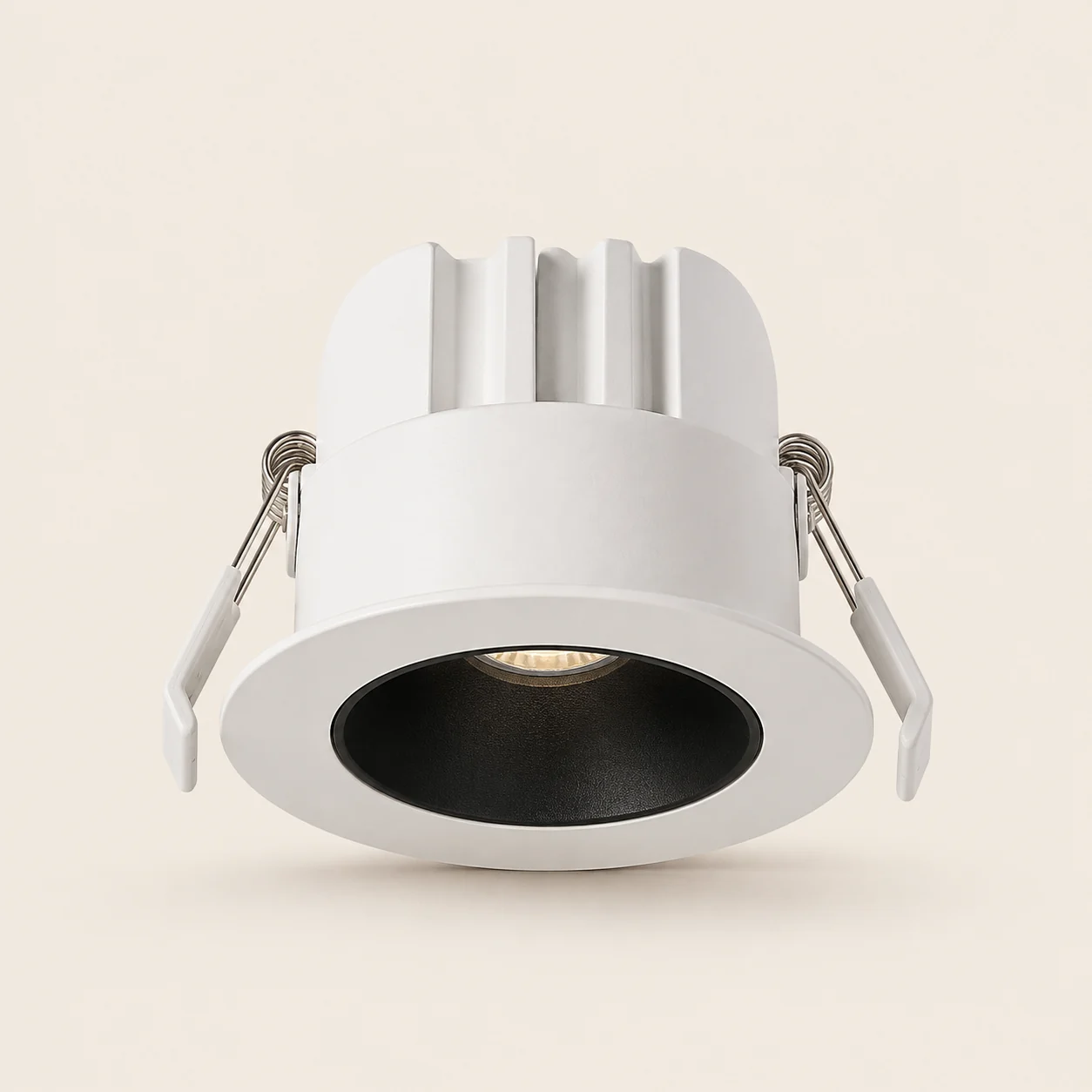

01Core 55
A compact, deep-recessed accent for artwork, joinery and intimate task zones.
- Power
- 8 W target
- Cut-out / body
- 55 mm cut-out target
- Beam
- 15° / 24° / 36°
- Colour
- CRI Ra ≥95 · 2700–6000 K target

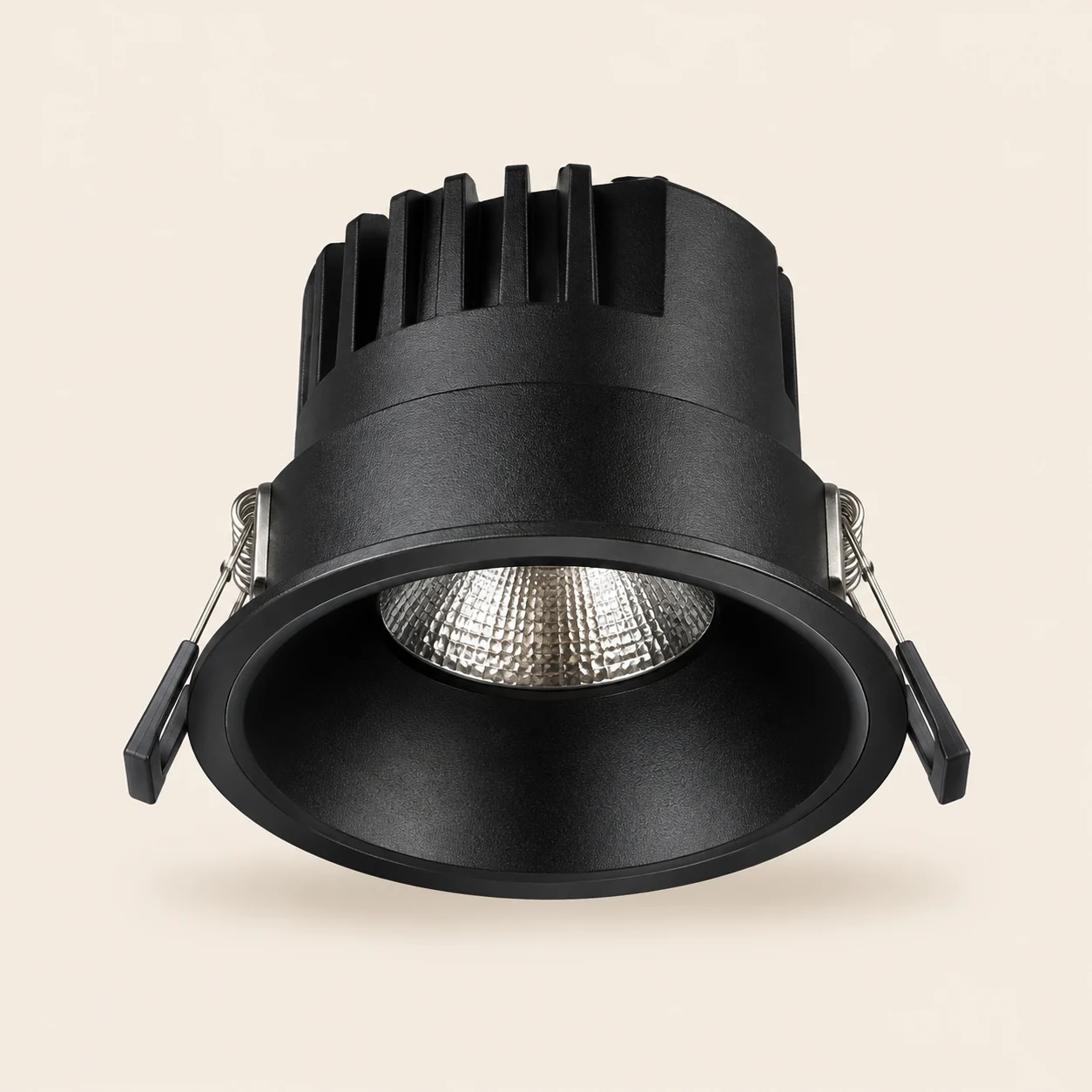

02Studio 75
A higher-output low-glare downlight for living rooms, dining areas and hospitality.
- Power
- 12 W target
- Cut-out / body
- 75 mm cut-out target
- Beam
- 24° / 36° / 55° / 60°
- Colour
- CRI Ra ≥95 · 2700–6000 K target

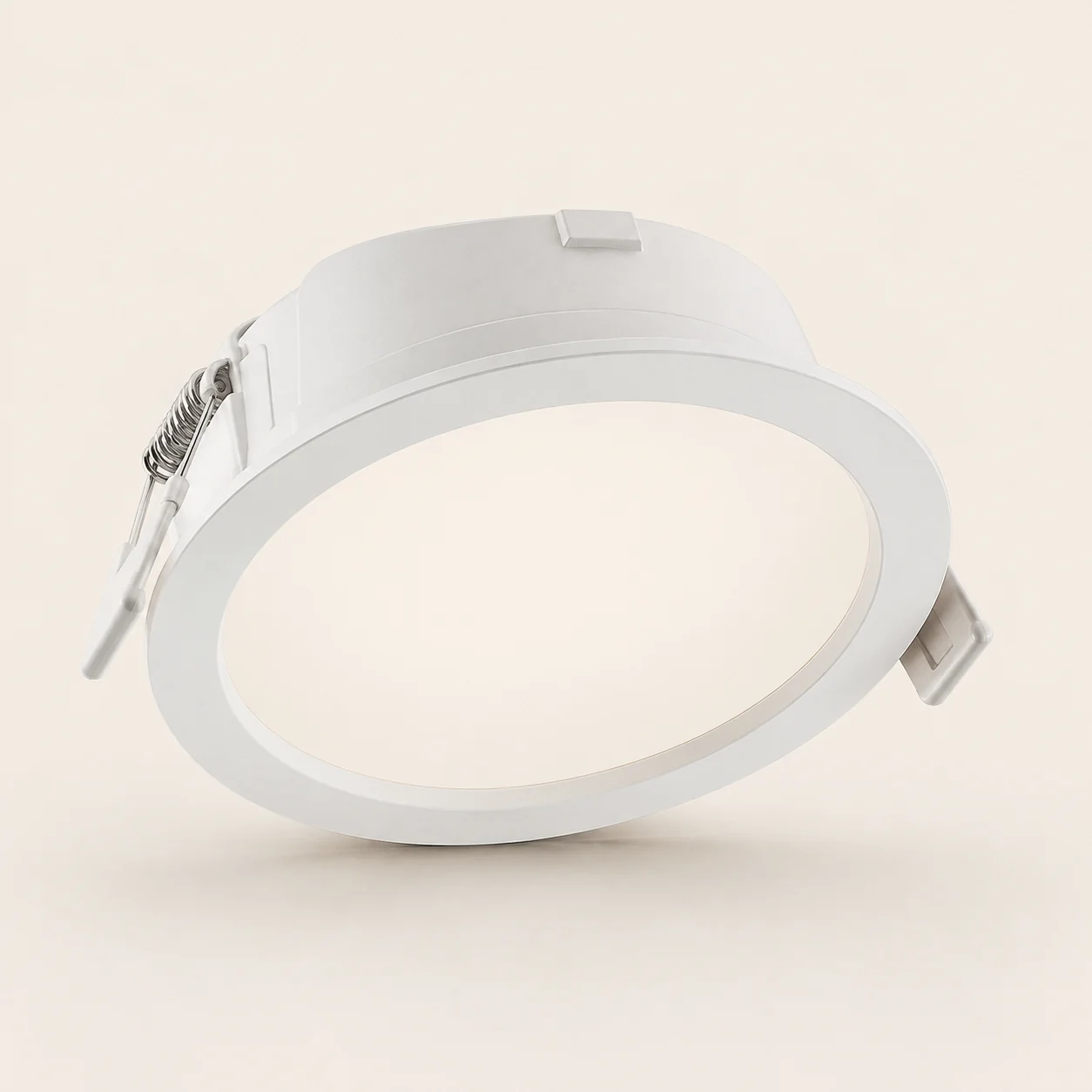

03Soft 83
A shallow, wide-beam format for circulation and comfortable ambient coverage.
- Power
- 10 W target
- Cut-out / body
- Ø83 × 60 mm body · cut-out TBC
- Beam
- 80° wide beam
- Colour
- CRI Ra ≥90 · 2700–6000 K target

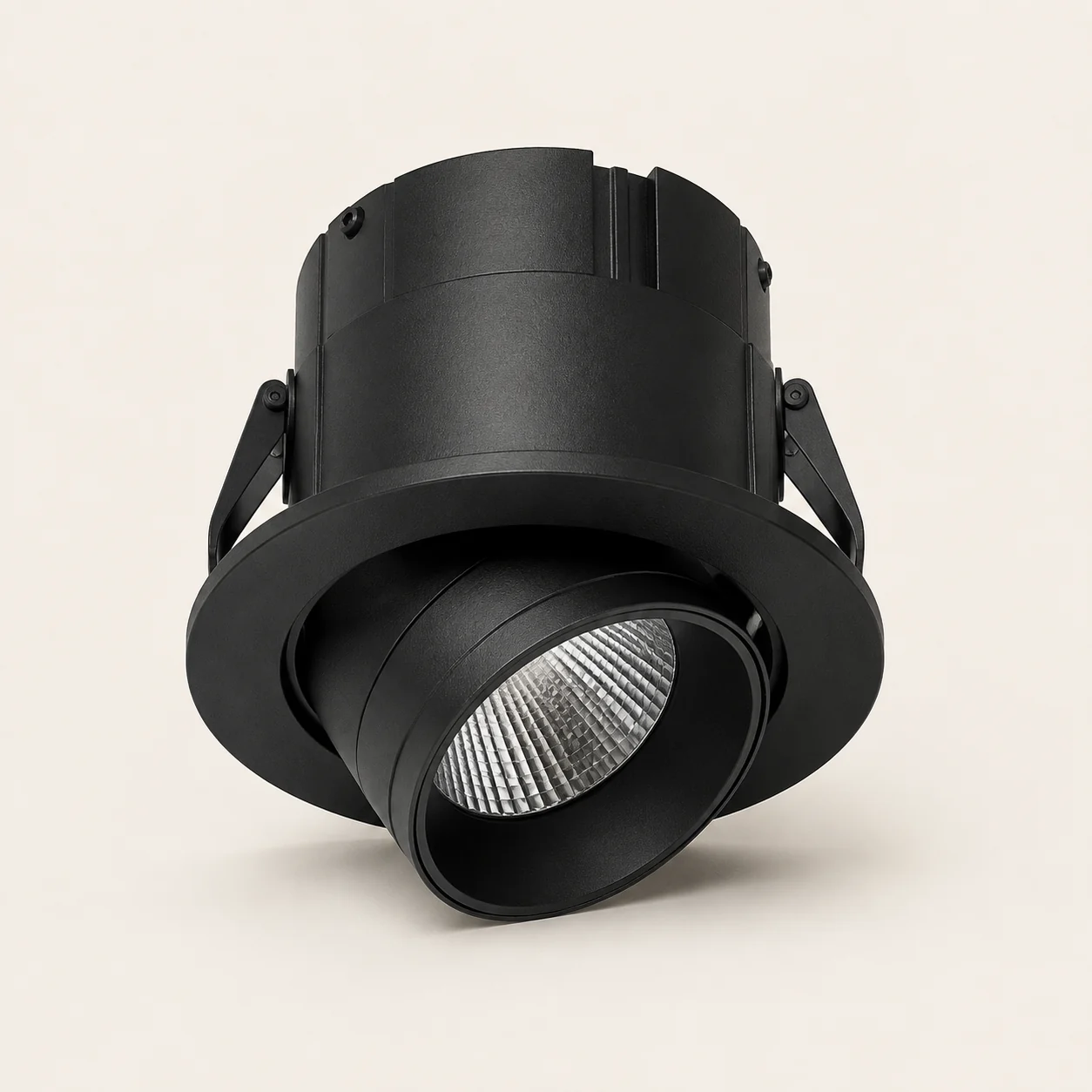

04Aim 75
A recessed gimbal with approximately 30° tilt for art, tables and architectural focus.
- Power
- 8 / 12 W target
- Cut-out / body
- 55 / 75 mm cut-out target
- Beam
- 15° / 24° / 36°
- Colour
- CRI Ra ≥95 · 2700–6000 K target
05 — Track catalog specificationWhat the source
What the source
range confirms.
These are supplier-catalog values, not certification results. Final datasheets will identify the exact Sense model, driver, photometry and registration scope.
- Track voltage
- 48 V DC
- Light source
- Osram or Bridgelux, depending on family
- Optics
- GR Optics lenses
- Colour rendering
- CRI Ra >90
- Colour temperature
- 3000 K / 4000 K / 6000 K
- Finish
- Black; selected recessed rails also available in white
- Catalog control
- Three-colour change and dimming on designated variants
06 — India configurationEngineered for India.
Engineered for India.
Certified before sale.
The source catalog alone does not establish Indian conformity. The India edition will be frozen, tested and registered by model family before any BIS mark or certified claim is used.
230 V / 50 Hz in.
48 V DC on the rail.
The India driver specification will be 220–240 V AC, 50 Hz input with 48 V DC output. Driver capacity, thermal conditions and voltage drop are verified for every run.
Separate registration scope.
LED controlgear is evaluated under IS 15885 (Part 2 / Section 13). Only the tested driver and declared model family will be paired with the public claim.
Fixed and recessed classifications.
Applicable products are evaluated under IS 10322 (Part 5 / Section 1) for fixed general-purpose LED luminaires and Section 2 for recessed LED luminaires.
No mark before registration.
After grant, the article or packaging will carry the applicable IS number, BIS Standard Mark or prescribed conformity wording, and registration number in a legible, durable form.
Specify the room.
We compose the light.
- 01Share the reflected ceiling plan
Ceiling type, room geometry, furniture and surfaces establish the rail layout.
- 02Choose the light layers
Ambient, task, accent and decorative light are selected by purpose—not by fixture count.
- 03Engineer + certify the schedule
Final models, drivers, loads and certification references are locked before quotation and supply.
- 04Install, aim + commission
The system is tested, grouped into Sense scenes and aimed against the completed interior.
